Good infrastructure is maintainable, scalable, robust, resilient and secure. And it stays this way by putting processes into place which perform upkeep on all of these factors. So, how can you ensure that these upkeep processes are healthy and understood by everyone?

People don’t think in text

Our brains aren’t made for thinking in text. Try to remember the last page of the last book you read.

Now try to remember the route you took from your childhood bedroom to the kitchen.

We are visual-spatial thinkers. And as such, our documentation should be primarily visual-spatial.

Flowcharts, even when done on the back of a napkin, can show you more than a full-length page of documentation.

But why settle for napkins? You can use tools like excalidraw to draw them out, or even better; use a code-based tool to have them drawn for you.

That way you can save the code in your versioncontrol system and see how your diagrams – and your infra, or your understanding of it – evolved over time.

Let’s practice a little

I use a notetaking tool called obsidian. In it, a widely used language for marking up flowcharts is used: mermaid.

Mermaid is easily integrated into any pipeline for documentation builds. Gitlab even has it integrated into their markdown renderer!

So, let’s learn by building.

Step 1: Start with a basic flowchart

flowchart TD
    A[Start] --> B[Do something] --> C[Finish]

This is a basic top-down flowchart:

• flowchart TD tells Mermaid we’re drawing a top-down flowchart.
• The arrows (-->) connect nodes.
• Each node has an ID (e.g. A) and a label (e.g. Start).

Try changing the labels or rearranging the arrows. That’s the quickest way to get a feel for how it works.

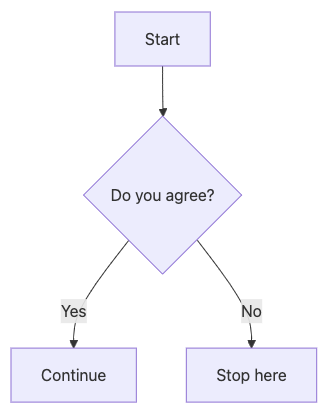

Step 2: Add conditional logic

Let’s make it interactive by adding a decision.

flowchart TD
    A[Start] --> B{Do you agree?}
    B -- Yes --> C[Continue]
    B -- No --> D[Stop here]

Here we introduce:

• {curly braces} to represent a decision node.
• Multiple arrows coming out of the same node with labels (Yes and No).

Now we have a mini flow that resembles real-world logic.

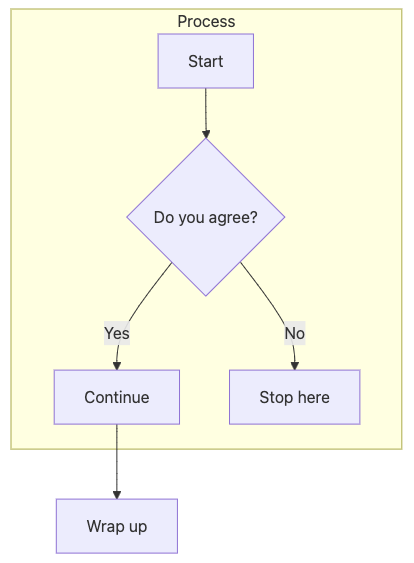

Step 3: Modularizing with subgraphs

As diagrams grow, structure helps. Let’s group nodes into a logical block.

flowchart TD
    subgraph Process
        A[Start] --> B{Do you agree?}
        B -- Yes --> C[Continue]
        B -- No --> D[Stop here]
    end
    C --> E[Wrap up]

• subgraph NAME groups related nodes.
• end closes the group.
• The outer node E connects to the subgraph.

This is great for readability and managing large diagrams.

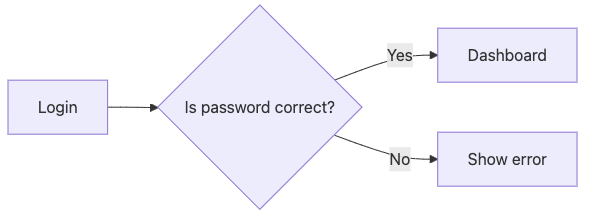

Step 4: Change direction and style

Want things to flow left to right?

flowchart LR
    A[Login] --> B{Is password correct?}
    B -- Yes --> C[Dashboard]
    B -- No --> D[Show error]

• LR means Left to Right.
• You can also use RL (Right to Left), BT (Bottom to Top).

Step 5: Make some sequence diagrams and GANTT charts!

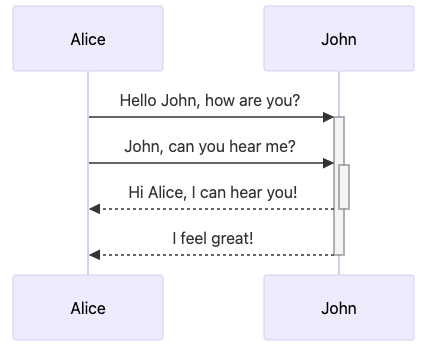

I think you get the gist of it. Let’s show you some more basic examples. How about a sequence diagram?

sequenceDiagram
    Alice->>+John: Hello John, how are you?
    Alice->>+John: John, can you hear me?
    John-->>-Alice: Hi Alice, I can hear you!
    John-->>-Alice: I feel great!

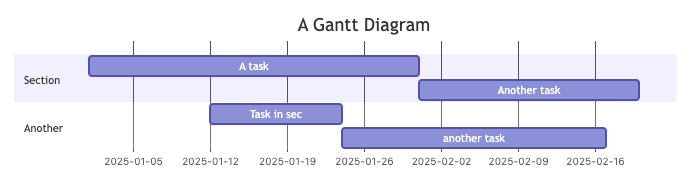

Or even a GANTT chart, for all of you aspiring project managers:

gantt
    title A Gantt Diagram
    dateFormat  YYYY-MM-DD
    section Section
    A task           :a1, 2025-01-01, 30d
    Another task     :after a1  , 20d
    section Another
    Task in sec      :2025-01-12  , 12d
    another task      : 24d

And if you want to get even fancier, just go visit the docs at mermaidjs.

This skill is crucial

While this might seem like a fun inocuous little tutorial for mermaidjs, the point I’m trying to make is this:

There is no excuse for not having diagrams for your infrastructure, your network and your application services — and there is tremendous value in them.

I have, in fact, on occasion helped technical teams solve their own problems just by diagramming it out. So do yourself a favor. Get your team to do diagrams instead of plain text.
